Baofeng 500N

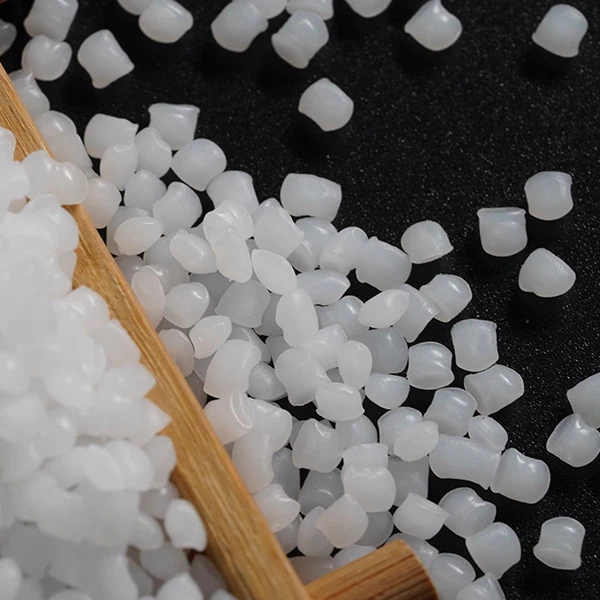

Product Features: This product is made of injection-grade polypropylene (PP) material, combining high rigidity and excellent flowability for efficient molding with dimensional stability. It meets mass production requirements for injection molding. The material is free from visible impurities and meets general-grade specifications in certain applications. With low moisture absorption, it maintains consistent quality during processing, ensuring compatibility with standard injection molding techniques and various mold types. The product is easy to produce and debug, offering strong quality control for manufacturing diverse light industrial and general-purpose products.
Technical specifications: The melt has a flow rate of approximately 12g/10min, density of 0.9g/cm³, tensile strength of ≥35MPa, and tensile modulus of about 1550MPa.
Application Scope: Designed for general injection molding applications, this product line primarily serves light industrial goods and packaging container sectors. It produces plastic household items (e.g., basins, compact storage boxes), furniture accessories (e.g., simple table-chair connectors, small supports), cargo containers, and injection-molded barrels. Additionally, it accommodates low-complexity auxiliary structural components for home appliances, meeting mass production requirements. The product line covers mainstream injection molding scenarios in daily light industry and general packaging.
|
Project |
Test condition |
Attribute value |
Unit |
Test method |
|
Physical property |
||||
|
Melt index |
11.9 |
g/10 min |
GB/T 3682-2000 |
|
|
Grain size |
black granule |
0 |
individual /kg |
SH/T 1541-2006 |
|
Grain size |
chromosome |
1 |
individual /kg |
SH/T 1541-2006 |
|
Grain size |
Large and small grains |
0 |
individual /kg |
SH/T 1541-2006 |
|
Isometric index |
96 |
% |
GB/T 2412-2008 |
|
|
Ash content |
mass fraction |
278 |
mg/kg |
GB/T 9345.1-2008 |
|
Mechanical behavior |
||||
|
Tensile yield strength |
32 |
MPa |
GB/T 1040.2-2006 |
|
|
Flexural modulus |
1420 |
MPa |
GB/T 9341-2008 |
|
|
Impact strength of a simply supported beam with a notch |
23℃ |
2 |
kJ/m² |
GB/T 1043.1-2008 |
